Masterkorp's Jaguar 0.4 alpha build.
Author Message
LQFP112 - Up with the play
User avatar

Joined: Tue Jan 17, 2012 11:21 am
Posts: 171
Location: Ponte de Lima, Portugal
Hello,

I am finnaly about to step into the FreeEMS awesoness on my Nissan Patrol RB25det swap, for that I have a jaguar 0.4 that was been waiting for this day for a while.

First, beware I am a noob when it comes to EFI gasoline , so prepare to be bombarded with questions :P

I started to lay out a task list.
Attachment:
File comment: Full task list

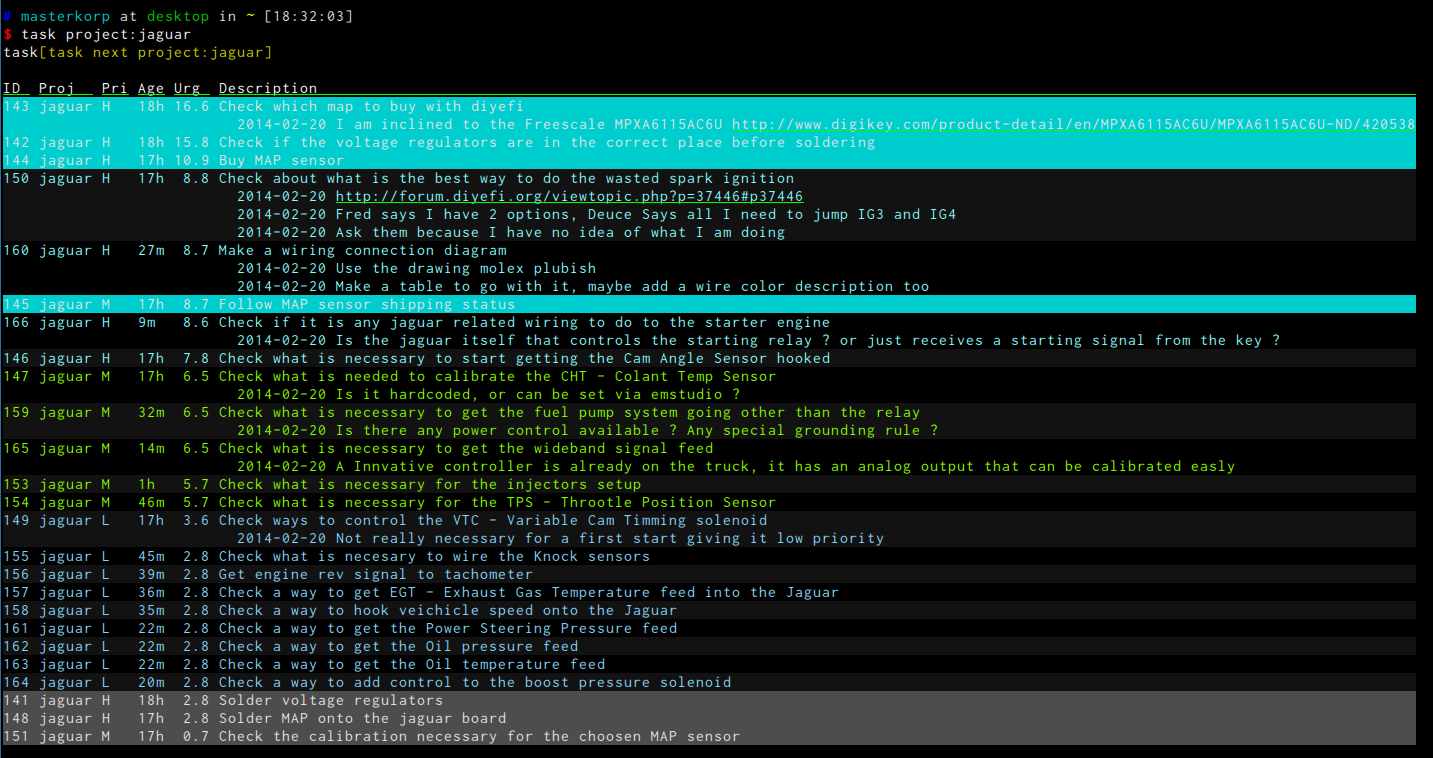

2014-02-20-183246_1433x758_scrot.png [ 217 KiB | Viewed 6951 times ]


They are sorted by urgency, grey ones are block, blues need to be done to unblock them (some blue ones are also blocked by others, I still did made a theme for that).

To narrow them down to a first milestone I tagged them:
Attachment:
2014-02-20-183548_1424x576_scrot.png [ 157.84 KiB | Viewed 6951 times ]


Updates comming soon.


Thu Feb 20, 2014 7:37 pm
Profile
Moderator
User avatar

Joined: Tue Jan 15, 2008 2:31 pm
Posts: 15342
Location: Home sweet home!
Too much typing to comment on all of that, but how about this: You call me here at home over voip for cheap, we read through each item, and I explain it, you take detailed notes/transcript and publish it here afterward. Deal?

_________________
DIYEFI.org - where Open Source means Open Source, and Free means Freedom
FreeEMS.org - the open source engine management system
FreeEMS dev diary and its comments thread and my turbo truck!
n00bs, do NOT PM or email tech questions! Use the forum!
The ever growing list of FreeEMS success stories!


Thu Feb 20, 2014 9:09 pm
Profile WWW
LQFP112 - Up with the play
User avatar

Joined: Tue Jan 17, 2012 11:21 am
Posts: 171
Location: Ponte de Lima, Portugal
Hey fred,

This task just to show my ground, I pretend to be asking and researching each point one at the time, using my own pace, the task list is a way to get my bearings, I like to lay as much as I can so I can prioritize and move at a steady pace.

A chat would be great too, it must be at the weekend since we have such diferent timezones, if you can't I will try and schedule a good time.


Thu Feb 20, 2014 10:03 pm
Profile
LQFP112 - Up with the play
User avatar

Joined: Tue Jan 17, 2012 11:21 am
Posts: 171
Location: Ponte de Lima, Portugal
Ok, lets start with the simplest of the questions, the MAP sensors

I am thinking on using then FreeSCALE MPXA66115AC6U Its seems to be the recomended one.
The price its accessible and it meets the boots requiriments of the first phase of the RB build.

Datasheet


Fri Feb 21, 2014 2:21 am
Profile
Moderator
User avatar

Joined: Tue Jan 15, 2008 2:31 pm
Posts: 15342
Location: Home sweet home!
Umm, that looks wrong for any boost at all. Freescale do 2.5bar, 4bar and crazy high stuff. With those you get 1.5 bar boost, 3 bar boost (1 bar of vac).

_________________
DIYEFI.org - where Open Source means Open Source, and Free means Freedom
FreeEMS.org - the open source engine management system
FreeEMS dev diary and its comments thread and my turbo truck!
n00bs, do NOT PM or email tech questions! Use the forum!
The ever growing list of FreeEMS success stories!


Fri Feb 21, 2014 11:19 am
Profile WWW
LQFP112 - Up with the play
User avatar

Joined: Tue Jan 17, 2012 11:21 am
Posts: 171
Location: Ponte de Lima, Portugal
Which one do you recomend ?


Fri Feb 21, 2014 4:05 pm
Profile
QFP80 - Contributor

Joined: Thu Jan 12, 2012 12:54 pm
Posts: 67
Location: South Shithole
Coincidentally I've just been working with those. That one is fine for the AAP. For boosted MAP you want something like a MPXA4250AC6U which is what I used despite not planing to boost anytime soon.
Read up on the necessary trace cuts and patches before soldering those in.


Mon Mar 03, 2014 7:33 am
Profile
LQFP112 - Up with the play
User avatar

Joined: Tue Jan 17, 2012 11:21 am
Posts: 171
Location: Ponte de Lima, Portugal
Hello, so I got both, I want to go with with MPXA6115ACU first, cause its a direct fit and I don't plan to go away from the 7psi (stock boost) in the first few months, also, having to do the same thing twice allows me to better understand what I am doing.

Because I am very dumb, and a noob. so bear with me.
Attachment:
File comment: Map place

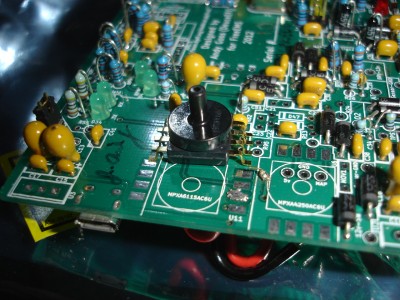

DSC00569.JPG [ 570.33 KiB | Viewed 6813 times ]


What is the orientation I should solder the MAP, reading the datasheet tells me nothing (or I can't read nothing into it, figure out what's Ground, 5v and output to figure out an orientation.

What are the Injectors|N and Injectors |P(B with vertical line on top of it)? I shall only connect the GND and the output that next to eah LED right (i am sure its that, just making sure)

Shall I pass all the grounds trough a common connection before the connectioning them to the board like most of the OEM ecus i rip off junkyards have? I think this makes sense.


Sun Mar 16, 2014 11:07 pm
Profile
LQFP112 - Up with the play
User avatar

Joined: Tue Jan 17, 2012 11:21 am
Posts: 171
Location: Ponte de Lima, Portugal
Thanks to malcom2074 i found the Power, ground and variable output on page 4, did not kow how could i've missed it.


Sun Mar 16, 2014 11:14 pm
Profile
LQFP144 - On Top Of The Game
User avatar

Joined: Thu Feb 25, 2010 3:57 am
Posts: 570
Location: Gosport, IN USA
masterkorp, see this thread for MAP and AAP trace corrections before soldering on the on-board MAP or AAP sensors: http://forum.diyefi.org/viewtopic.php?p=34891#p34891

The "U?" designations denote where pin #1 is on each IC on the Jaguar boards.

_________________
Andy.
FreeEMS vehicle #11, 1932 Ford 5 Window Coupe with a 1996 GM 3.1L SFI V6 with DIS ignition
FreeEMS vehicle #16, 1996 Chevrolet S10 2.2L SFI I4 with DIS ignition
Owner of http://www.coolefi.com


Mon Mar 17, 2014 1:12 am
Profile WWW
