Re: Need Help on UnSecure MCU
my finding today:
1st jaguar board :
- load caps changed to 18pF -- no effect
- changed crystal to another brand with same 18pF -- no effect
- Hiwave still able to read MCU memory but the connection is not stable
- not able unsecure MCU
2nd jaguar board :
- connection is better, 50% chance able to connect with ack sync speed.
- can unsecured MCU with a low speed 10.3xMhz with the original 22pf load cap
- loaded s19 SM to MCU but not yet tested.
3rd board still not completed soldering, will get it done and test again by weekend.
i believe my cheap TBDML is bad one.
now a new USBDM under shipping to my office
1st jaguar board :
- load caps changed to 18pF -- no effect
- changed crystal to another brand with same 18pF -- no effect
- Hiwave still able to read MCU memory but the connection is not stable
- not able unsecure MCU
2nd jaguar board :
- connection is better, 50% chance able to connect with ack sync speed.
- can unsecured MCU with a low speed 10.3xMhz with the original 22pf load cap
- loaded s19 SM to MCU but not yet tested.
3rd board still not completed soldering, will get it done and test again by weekend.
i believe my cheap TBDML is bad one.
now a new USBDM under shipping to my office
- Kennybug
- QFP80 - Contributor
- Posts: 79
- Joined: Sat Mar 31, 2012 6:01 pm
- Location: Hong Kong
- Contact:
Re: Need Help on UnSecure MCU

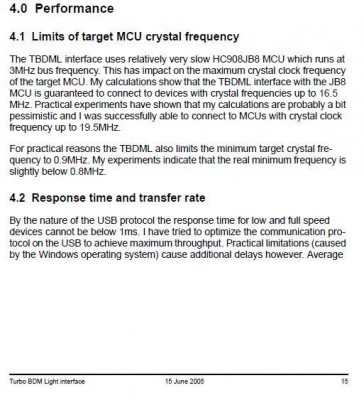

I read the TBDML documents again.
My cheap tbdml still using 1.0 firmware
may have the below limitation:
My cheap tbdml still using 1.0 firmware
may have the below limitation:
Re: Need Help on UnSecure MCU
:-(
DIYEFI.org - where Open Source means Open Source, and Free means Freedom
FreeEMS.org - the open source engine management system
FreeEMS dev diary and its comments thread and my turbo truck!
n00bs, do NOT PM or email tech questions! Use the forum!
The ever growing list of FreeEMS success stories!
FreeEMS.org - the open source engine management system
FreeEMS dev diary and its comments thread and my turbo truck!
n00bs, do NOT PM or email tech questions! Use the forum!
The ever growing list of FreeEMS success stories!
- Kennybug
- QFP80 - Contributor
- Posts: 79
- Joined: Sat Mar 31, 2012 6:01 pm
- Location: Hong Kong
- Contact:
Re: Need Help on UnSecure MCU

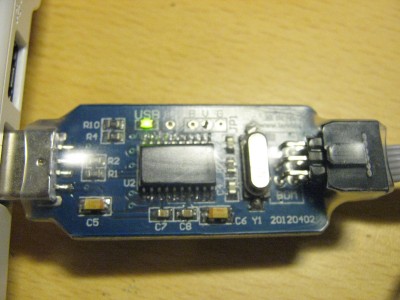

my China USBDM
