Ahmad's 1994 Proton Wira (44th)
Author |
Message |
amatt
QFP80 - Contributor
Joined: Mon Oct 08, 2018 7:12 am Posts: 46
|

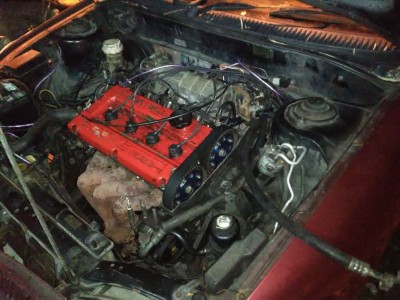

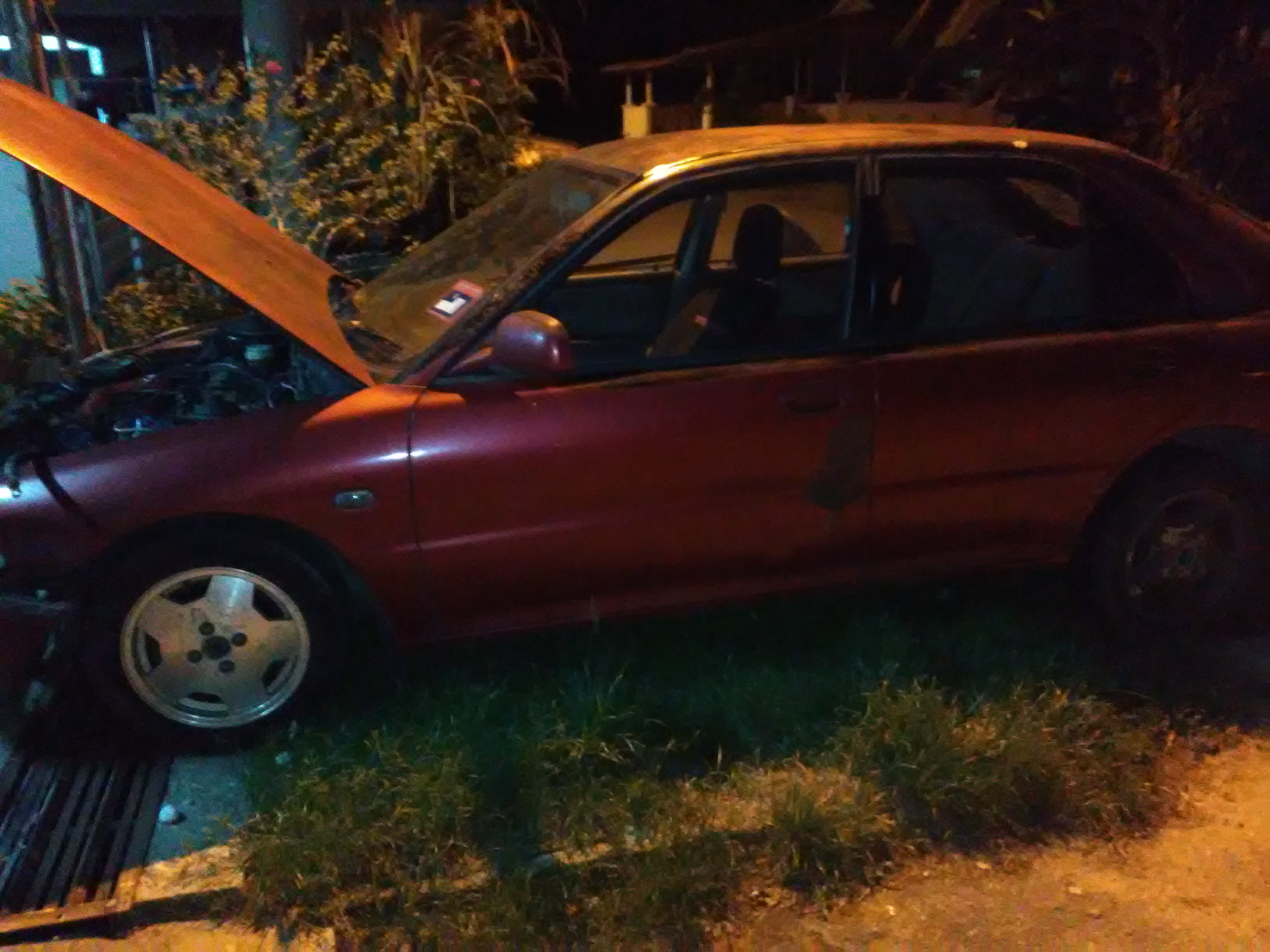

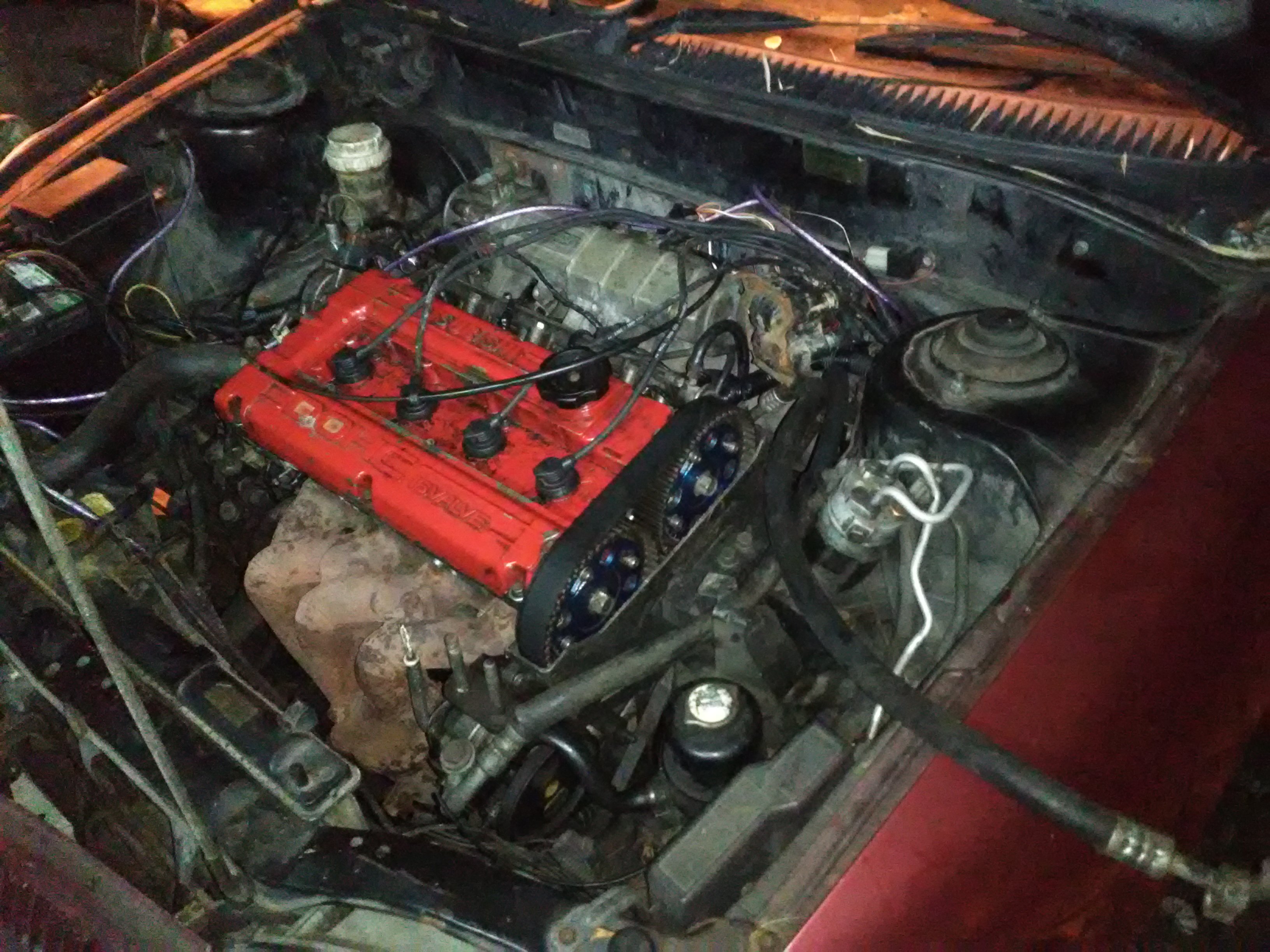

Its all about Covid19, I had too much time at home. Currently working on my 1994 Proton Wira, with Mitsubishi 4G61 engine convertion. Later it will 4G63T take in place. Attachment:
IMG_20200327_200115.jpg [ 791.75 KiB | Viewed 5409 times ]
Attachment:
IMG_20200327_200056.jpg [ 1.05 MiB | Viewed 5409 times ]

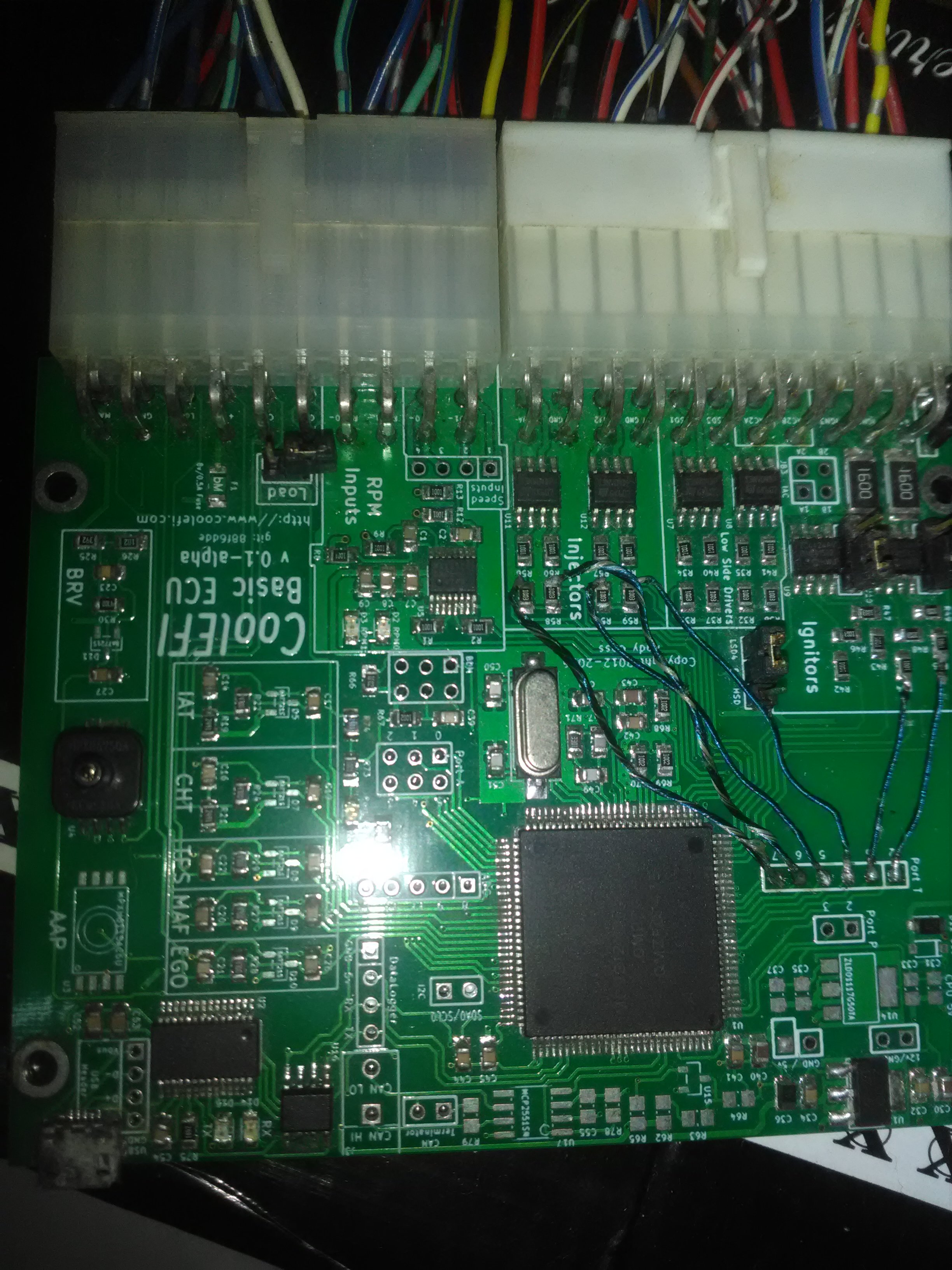

Previous discussion is here: viewtopic.php?f=6&t=2865&start=30I also done modification on Coolefi Basic Ecu as suggest. Attachment:
IMG_20200327_202622.jpg [ 1.12 MiB | Viewed 5409 times ]

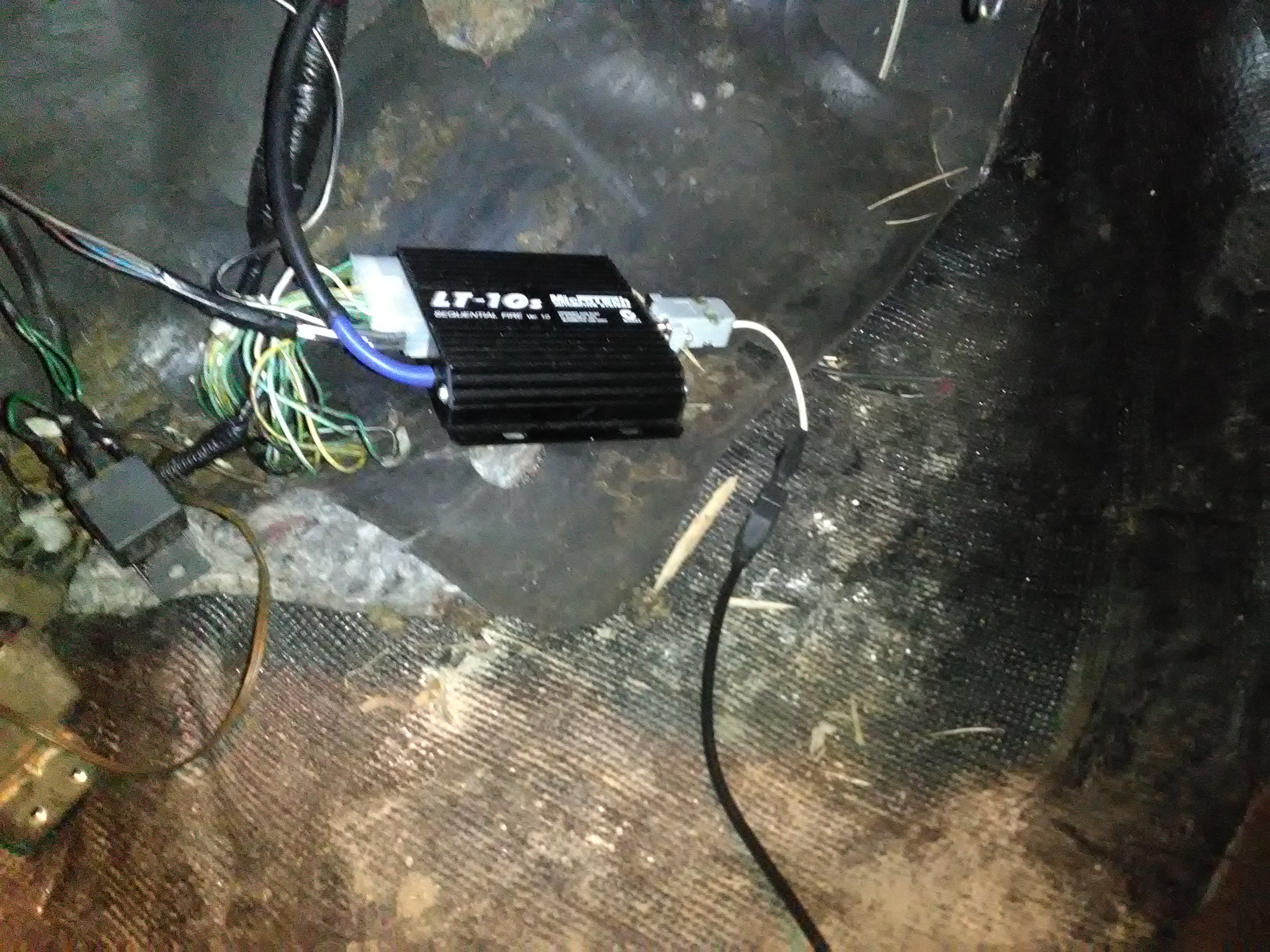

I finish doing wiring just now, but it is suit the one and only... MICROLEB. No worries about the wiring harness, I can do an adaptor to suit Coolefi. Once both ecu is ready and Covid19 going away my plan is todo dyno on Freeems vs Microtech to see which is produce more power. Attachment:
IMG_20200327_201600.jpg [ 1.67 MiB | Viewed 5409 times ]
Thats all for now. Please stay safe. Stay at home.
|
Fri Mar 27, 2020 2:07 pm |
|
 |
Fred
Moderator
Joined: Tue Jan 15, 2008 2:31 pm Posts: 15376 Location: Home sweet home!
|
Re the Lebo ECU vs FreeEMS (or any other ECU for that matter) max power is easy to come by, harder is economy/efficiency and/or driveability.
Funny to see LibreHacks mentioned on here - for a long time I *really* didn't want that as I felt it was fragmenting a community that was already small enough. And at the time that was a fair thought. 5 years on, though, the comedy of errors has long since ceased and the forum is even more dead than this one. RIP, Libre hacks.
Mean while, although I don't hack on the firmware often, I still do hack on the firmware, and am daily driving it in one car, and have it as the only way to drive another car that I don't use often (because not legal right now). FreeEMS is not dead, yet. The IC is not end of lifed yet. But in both cases, Lithium batteries and modern electric motors have put the writing on the wall. I'll keep burning fuel for fun until the day I die or they arrest and lock me up for breaking future emissions laws. But I can see myself in an EV for mundane driving chores at some point, too. Once something like the Rivian is affordable for me, I'll take the plunge.
Sorry for derailing your thread - you just brought back a bunch of memories and nostalgia for me.
Good luck with the build! PS, where's your first start video as evidence you're allowed to post in this still-exclusive section??? ;-)
_________________DIYEFI.org - where Open Source means Open Source, and Free means Freedom FreeEMS.org - the open source engine management system FreeEMS dev diary and its comments thread and my turbo truck!n00bs, do NOT PM or email tech questions! Use the forum! The ever growing list of FreeEMS success stories!
|
Thu Apr 02, 2020 10:47 am |
|
 |
amatt
QFP80 - Contributor
Joined: Mon Oct 08, 2018 7:12 am Posts: 46
|
Fred wrote: Good luck with the build! PS, where's your first start video as evidence you're allowed to post in this still-exclusive section???  No start yet, as I'am waiting for a pre-compile S19 for Mitsi 4/2 and working copy of Emstudio. Or just stick me a link that can guide me how to compile S19 from source code. At least I can learn something during this lockdown period.
|
Fri Apr 03, 2020 5:29 pm |
|
 |
amatt
QFP80 - Contributor
Joined: Mon Oct 08, 2018 7:12 am Posts: 46
|
Fred wrote: Re the Lebo ECU vs FreeEMS (or any other ECU for that matter) max power is easy to come by, harder is economy/efficiency and/or driveability. Funny to see LibreHacks mentioned on here - for a long time I *really* didn't want that as I felt it was fragmenting a community that was already small enough. And at the time that was a fair thought. 5 years on, though, the comedy of errors has long since ceased and the forum is even more dead than this one. RIP, Libre hacks. Mean while, although I don't hack on the firmware often, I still do hack on the firmware, and am daily driving it in one car, and have it as the only way to drive another car that I don't use often (because not legal right now). FreeEMS is not dead, yet. The IC is not end of lifed yet. But in both cases, Lithium batteries and modern electric motors have put the writing on the wall. I'll keep burning fuel for fun until the day I die or they arrest and lock me up for breaking future emissions laws. But I can see myself in an EV for mundane driving chores at some point, too. Once something like the Rivian is affordable for me, I'll take the plunge. Sorry for derailing your thread - you just brought back a bunch of memories and nostalgia for me. Good luck with the build! PS, where's your first start video as evidence you're allowed to post in this still-exclusive section???  I'm still googling what Re The Lebo is  . Actually somewhere in 2016, I buy Cooefi Basic Ecu. Then few month later, I only know Libreems is a fork from Freeems and it point me here. PS: Sorry for the wrong section, please move to right one.
|
Fri Apr 03, 2020 7:31 pm |
|
 |
amatt
QFP80 - Contributor
Joined: Mon Oct 08, 2018 7:12 am Posts: 46
|

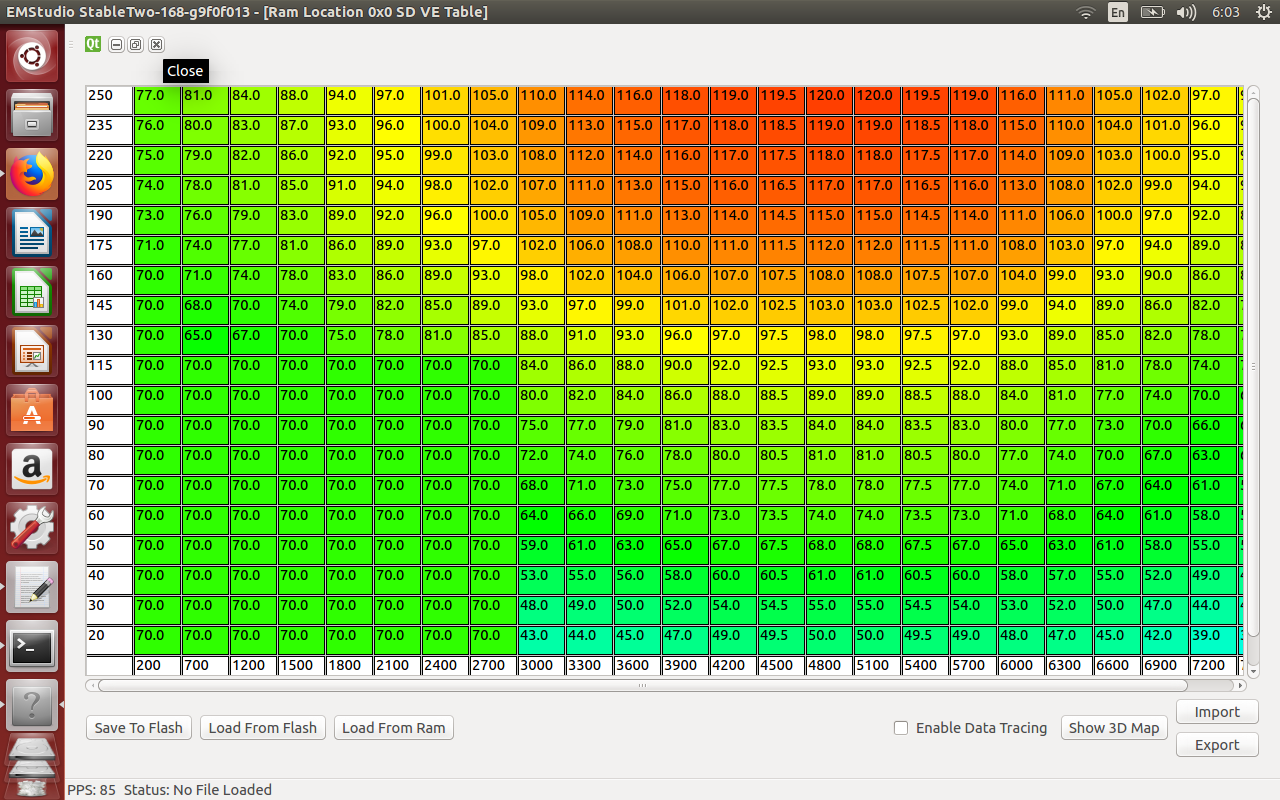

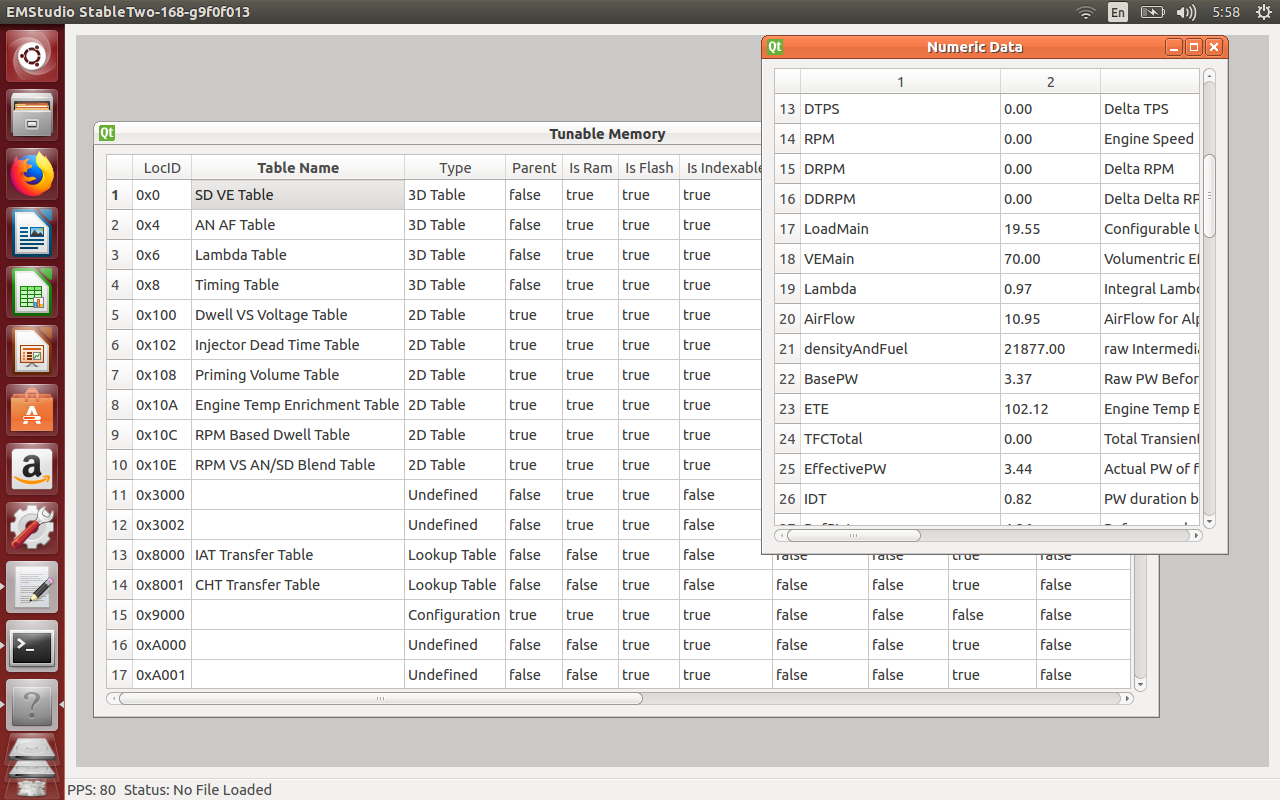

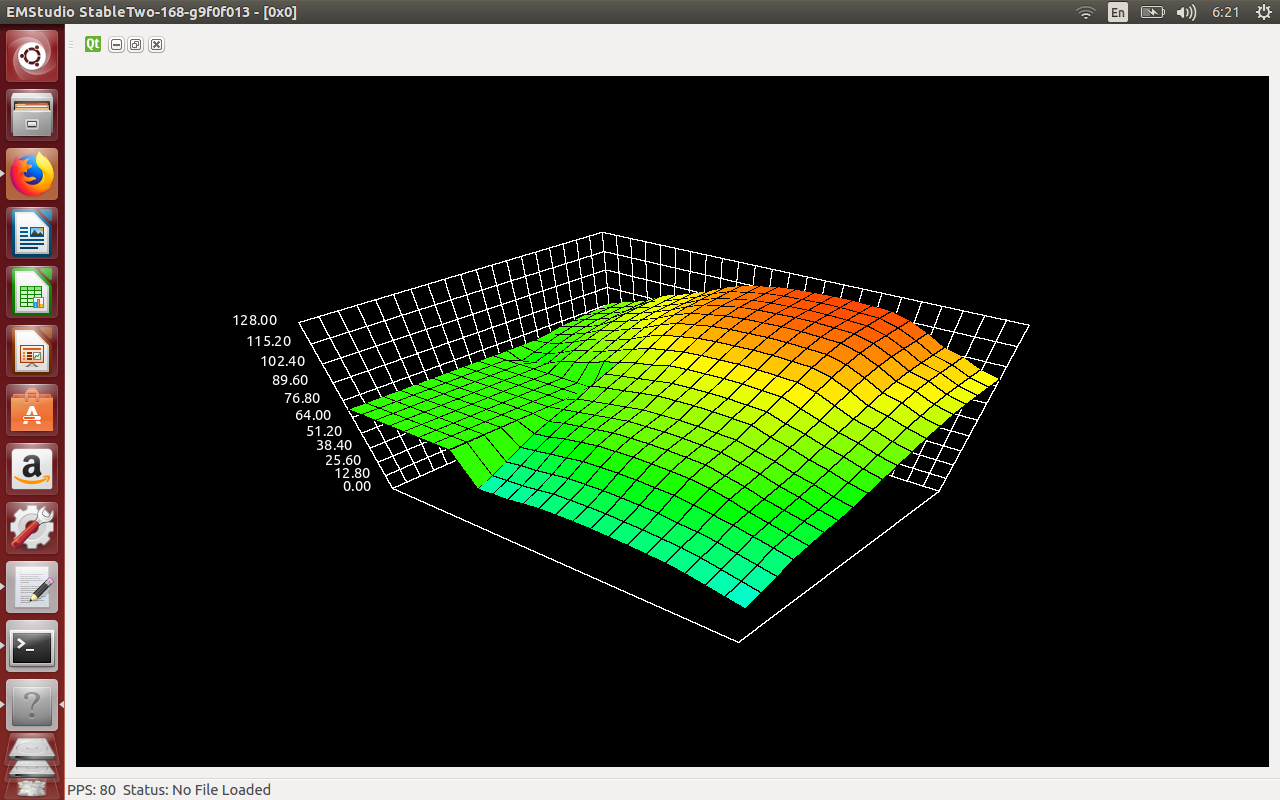

Today progress, I load my ecu with this : http://builds.freeems.org/firmware/mast ... nd2.s19.gzand it seems connect with Emstudio. Attachment:
s1.png [ 228.54 KiB | Viewed 5341 times ]
Attachment:
s2.png [ 250.06 KiB | Viewed 5341 times ]
Attachment:
s3.png [ 122.38 KiB | Viewed 5341 times ]
One issue, it not sync with my engine. Iat and clt is at reasonable value. With stimulator (4g63 trigger) also no sync. Where is my mistake?
|
Mon Apr 06, 2020 1:56 pm |
|
 |
Fred
Moderator
Joined: Tue Jan 15, 2008 2:31 pm Posts: 15376 Location: Home sweet home!
|
4g63 trigger sync from what? A real CAS turning in a drill or a jimstim or what? jimstim has a bad pattern that does not match the real car/CAS, and thus doesn't work with fussy FreeEMS which *does* match. You could probably get running with that firmware if the engine parameters are the same, if not you could bodge it, but better to do something better.
_________________DIYEFI.org - where Open Source means Open Source, and Free means Freedom FreeEMS.org - the open source engine management system FreeEMS dev diary and its comments thread and my turbo truck!n00bs, do NOT PM or email tech questions! Use the forum! The ever growing list of FreeEMS success stories!
|
Thu Apr 09, 2020 11:31 am |
|
 |
amatt
QFP80 - Contributor
Joined: Mon Oct 08, 2018 7:12 am Posts: 46
|
I do testing at engine, cranking, no sync. Take it out, and hook on ardustim, still not sync. Or probably Basic Ecu and Jaguar have a different cam/crank input?
|
Thu Apr 09, 2020 5:26 pm |
|
 |
DeuceEFI
LQFP144 - On Top Of The Game
Joined: Thu Feb 25, 2010 3:57 am Posts: 571 Location: Gosport, IN USA
|
The CoolEFI Basic ECU and the Jaguar use the same components and the same MCU pins for the crankshaft and camshaft sensor inputs. The Basic ECU is just a surface mount component version of my Jaguar ECU board.
|
Thu Apr 09, 2020 5:31 pm |
|
 |
amatt
QFP80 - Contributor
Joined: Mon Oct 08, 2018 7:12 am Posts: 46
|
Ok, let me try another shoot. Just load this http://builds.freeems.org/firmware/mast ... nd2.s19.gz alone or need to add other s19? I dont know how to explain, but rpm seen jumping around, Dockwidget is rapidly green,red,green,red... What is minimum require sensor input needed? Iat I hook 1k resistor to stimulate reading. I dont have real sensor yet.
|
Thu Apr 09, 2020 6:30 pm |
|
 |
Fred
Moderator
Joined: Tue Jan 15, 2008 2:31 pm Posts: 15376 Location: Home sweet home!
|
Either you have cam/crank reversed, or polarity somehow reversed or VR/hall settings on the board wrong, or something - maybe you have bad interference from your starter motor current draw.
flashing red/green is a solid sign that it's trying to sync and failing - in the case of 4/2 it's state based and thus will do that repeatedly if the signal is wrong, never finding a sequentially matching pair of states that prove sync, and actually prove the opposite, and thus loses it.
Do you own a scope? If you own a scope, check the signals for noise, otherwise check the signals for polarity - those CAS units require a pull up - I forget the value, but guessing the default on those boards is fine as I was involved in helping Andy with the design and spec. 1k probably adequate, much lower would likely burn out the transistors in the CAS.
_________________DIYEFI.org - where Open Source means Open Source, and Free means Freedom FreeEMS.org - the open source engine management system FreeEMS dev diary and its comments thread and my turbo truck!n00bs, do NOT PM or email tech questions! Use the forum! The ever growing list of FreeEMS success stories!
|
Fri Apr 10, 2020 3:36 am |
|
|
