I wonna consult you about the HCS12MEM command.
I wonna program serial monitor and bootloader to the S12 Chip.
So I build a Tubro BDM Light (TBDML) module.
But the help documentation only for PODEX's LRAE and serial monitor command.
This is the help documentation:


There are some common options that must be specified in most cases: interface type, interface port, target type, target oscillator frequency (if interface requires it and cannot auto-detect). Almost every call requires these, so for clarity they will be stated only once as an example, and omitted in the following examples, substituted by [-ipto] symbol.

Depending on the interface in use, different options are required:
TBDML - interface type and target type are required, no port specification is required (USB bus is assumed), no target frequency is required (TBDML can auto-detect it), but it can be overriden with -o option, if auto-detection fails and TBDML is unable to connect the target.
BDM12, PODEX - required are: interface type, target type, interface connection port and target frequency.
Two examples of these options for TBDML and PODEX follows: first example - interface is PODEX, serial port for PODEX attachment is /dev/uart0, target is MC9S12A64 MCU operating at 16MHz; second example - interface is TBDML (assumed connection via USB), target is MC9S12A64 MCU, operating frequency is auto-detected. hcs12mem call usually requires some more action commands to do something specific, but such call with these options only is convenient for verifying target communication - it initializes the target, displays all the info and quits:

hcs12mem -i podex -p /dev/uart0 -t mc9s12a64 -o 16MHz
hcs12mem -i tbdml -t mc9s12a64

Using LRAE serial bootloader, we specify following common options:
hcs12mem -i lrae -p /dev/uart0 -t mc9s12a64 -o 16MHz

Using serial monitor, we specify following common options (oscillator frequency is not required):
hcs12mem -i sm -p /dev/uart0 -t mc9s12a64

I could connect to the S12 chip whith the TBDML,like this:
hcs12mem -i tbdml -t mc9s12t64

But what command for TBDML? And what port(-p)to use?
hcs12mem -i lrae -p ??? -t mc9s12t64 -o 8MHz

By the way ,I had build the part or driver module PCB for XDP512

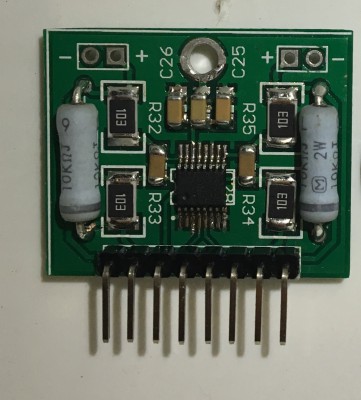

VR_LM1815_Bottom.jpg [ 484.02 KiB | Viewed 4059 times ]

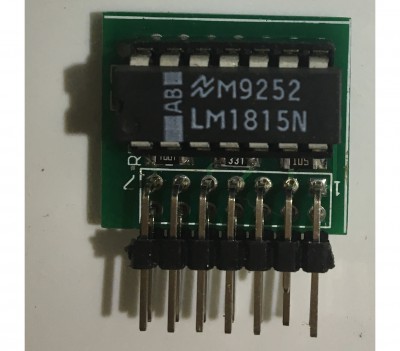

VR_LM1815.jpg [ 425.54 KiB | Viewed 4059 times ]

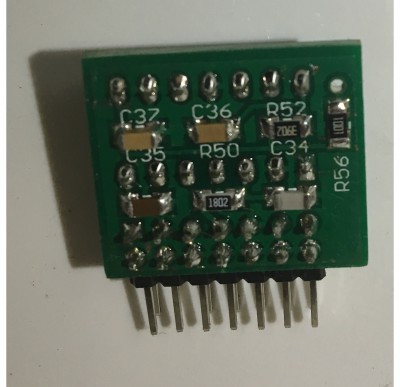

Dual_Bottom.jpg [ 660.6 KiB | Viewed 4059 times ]

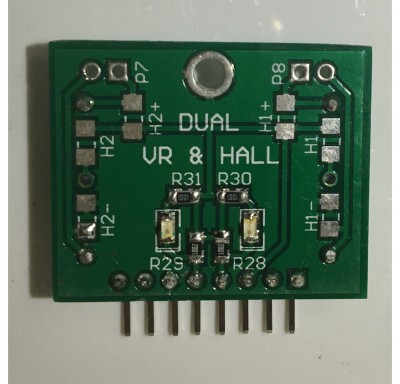

Dual_Top.jpg [ 568.63 KiB | Viewed 4059 times ]

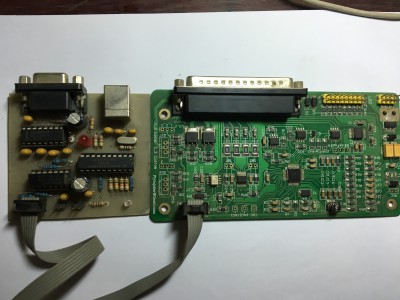

IMG_0041.JPG [ 2.37 MiB | Viewed 4059 times ]
Wed Jul 20, 2016 6:46 pm
User avatar

Joined: Tue Jan 15, 2008 2:31 pm
Posts: 15367
Location: Home sweet home!
I've not used HCS12MEM in years as the SM had a mass erase bug. All more recent loaders do things differently. I can't help you, I'm afraid.

Also, that looks like a pirate M$2 box. It has your email on it, though, so if they really want, they can track you down :-p
