USBDM - BDM DeuceEFI style

Post by DeuceEFI »

Ok, so after chatting with people on IRC it came to my attention that we needed a way to program the Serial Monitor onto the MCU without having to already have a BDM device, so here's my contribution...

A USBDM that can be made from a single sided PCB that you can etch at home if you have the materials to do so. There are only three (3) wire jumpers to run, or if you have a PCB manufacture make a batch my KiCAD files show the traces on the component side with the vias.

The Freescale MCU on the USBDM is programmed via the USB port using Freescale's GUI Bootloader, so you don't need a BDM or Serial port to go from a blank board to a working BDM.

I will upload the details and the KiCAD files to my github.com repository in the next couple of days and post a link in this thread when they are available.

Happy Debugging...
Attachments
USBDM IC side
USBDM IC side

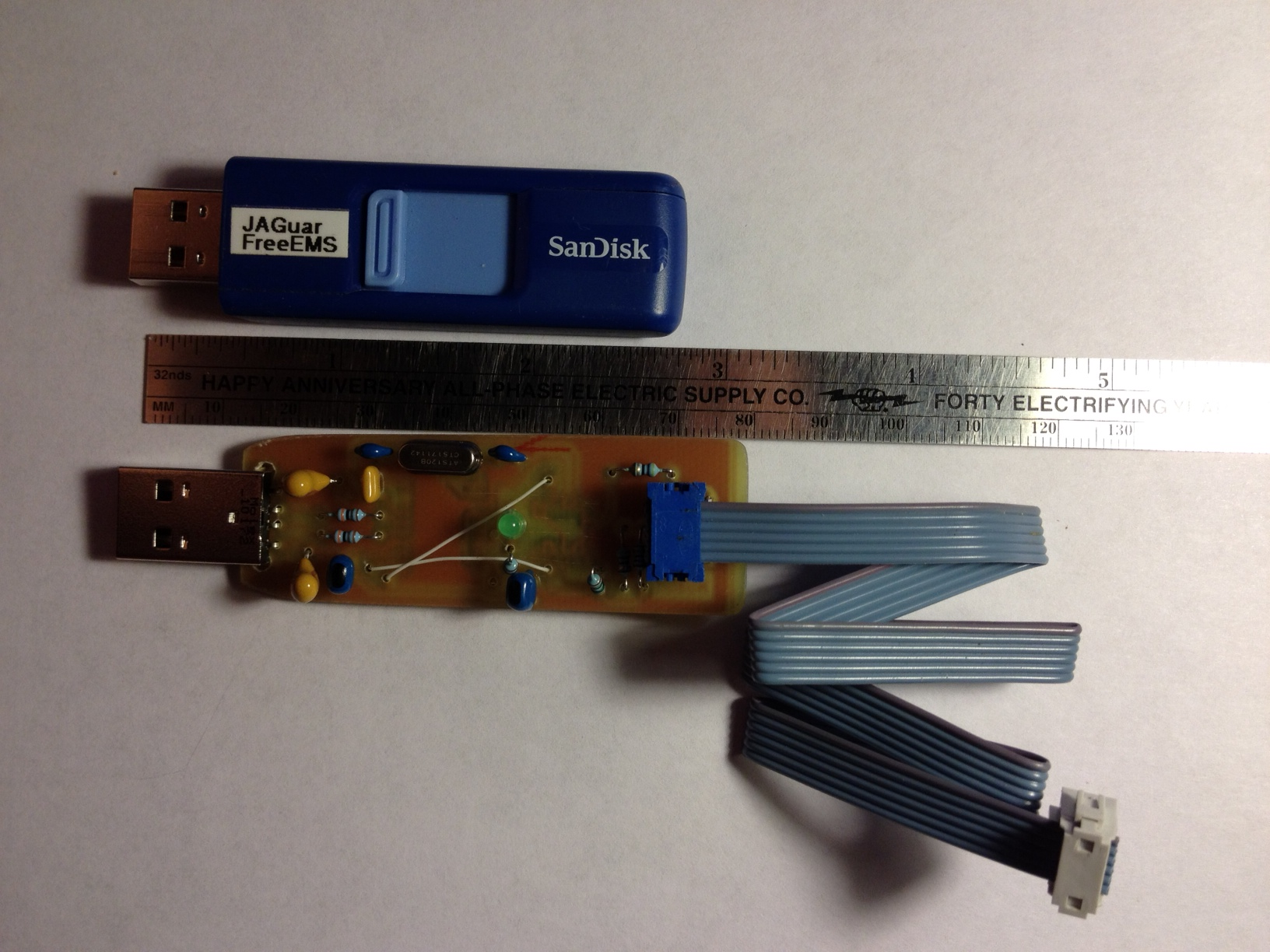

USBDM component side
USBDM component side
User avatar
Fred
Moderator
Posts: 15420
Joined: Tue Jan 15, 2008 2:31 pm
Location: Home sweet home!
Contact:

Re: USBDM - BDM DeuceEFI style

Post by Fred »

Very cool, fully DIYable BDM :-)
DIYEFI.org - where Open Source means Open Source, and Free means Freedom
FreeEMS.org - the open source engine management system
FreeEMS dev diary and its comments thread and my turbo truck!
n00bs, do NOT PM or email tech questions! Use the forum!
The ever growing list of FreeEMS success stories!
User avatar
DeuceEFI
LQFP144 - On Top Of The Game
Posts: 571
Joined: Thu Feb 25, 2010 3:57 am
Location: Gosport, IN USA
Contact:

Re: USBDM - BDM DeuceEFI style

Post by DeuceEFI »

Here is the link to my repository for my version of the USBDM:

https://github.com/DeuceEFI/USBDM

Instructions of how to load the USBDM firmware onto the Freescale MCU will follow soon.
preludelinux
QFP80 - Contributor
Posts: 51
Joined: Sat Feb 05, 2011 7:35 pm
Location: Moline IL 61265
Contact:

Re: USBDM - BDM DeuceEFI style

Post by preludelinux »

Nice !
I look forward to testing it out
User avatar
DeuceEFI
LQFP144 - On Top Of The Game
Posts: 571
Joined: Thu Feb 25, 2010 3:57 am
Location: Gosport, IN USA
Contact:

Re: USBDM - BDM DeuceEFI style

Post by DeuceEFI »

I have updated my github.com repository with instructions on how to load the USBDM firmware onto a blank Freescale HC9S08JS16CWJ MCU.

Freescale only offers a Windows only loader to program a blank MCU, but after the initial load you can use the Bootloader program that is part of the USBDM package for future firmware upgrades.

I think I read somewhere that you could use the same Bootloader program from the USBDM package for the initial load, but as I have no more USBDMs to build at the moment I can't test this theory. If you are able to load the USBDM firmware without the Freescale Bootloader GUI, please reply back to this thread.

Happy Debugging :-)
coolk0415
TO92 - Vaguely active
Posts: 1
Joined: Fri Apr 06, 2012 5:41 pm

Re: USBDM - BDM DeuceEFI style

Post by coolk0415 »

Nice !
Thank You
I like-DIY-work



Sorry for my bad English
